925-2500 oz-in Continuous Torque

2.4-7.5 HP Continuous Power

Key Performance Features:

  • NEMA 56 Flange Mounting

  • High Energy Neodymium Magnets

  • Operating Speeds to 6,000 RPM

  • High Torque to Size Ratio

  • Encoder Ready

  • CE & RoHS Compliant

  • 24-600 VDC Typical Bus Voltage

BFA56

   BRUSHLESS

  SERVO

 MOTOR

SERIES

BRUSHLESS

 SERVO

  MOTOR

   SERIES

Motor Characteristics (8 Pole Design)

Sample Motor Windings

(Additional Windings Available)

BFA56   ---   400

BFA56   ---   600

BFA56   ---   800

VALUES AS LISTED ARE TEST CONDITIONS, ACTUAL RESULTS MAY VARY

BFA56 Series Options

  • Encoders

  • Hall Sensor or Commutation Encoders

  • Gearboxes and Brakes

  • Application Specific Windings

  • Custom Mechanical Designs

  • Custom Cables, Connectors & Pullies

  • Sealing Options Available

  • For more options, see custom solutions , or contact us.

Typical Applications

  • Hybrid & Electrical Vehicle Systems, Commercial, Fleet & Military

  • Off-Road Applications

  • Power Steering

  • Vehicle Hydraulic Accessories

  • Robotics

  • Automated Guided Vehicles

  • Industrial Automation

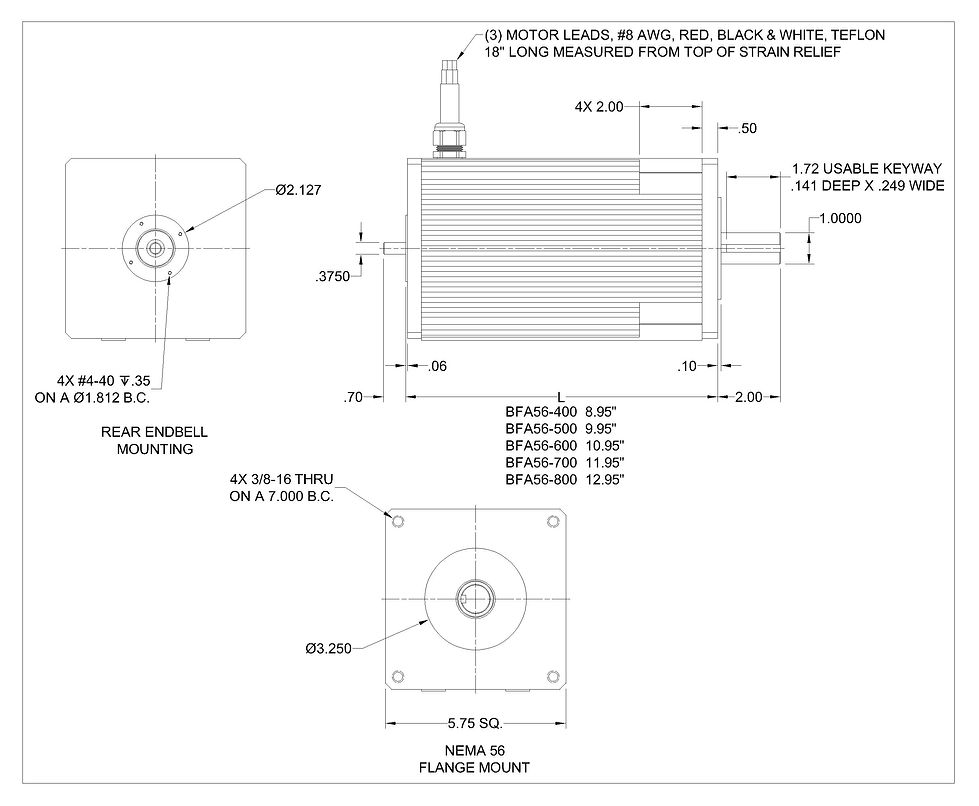

BFA56 Standard Motor Dimensions
